Home EV

EC300

EC300

EC300

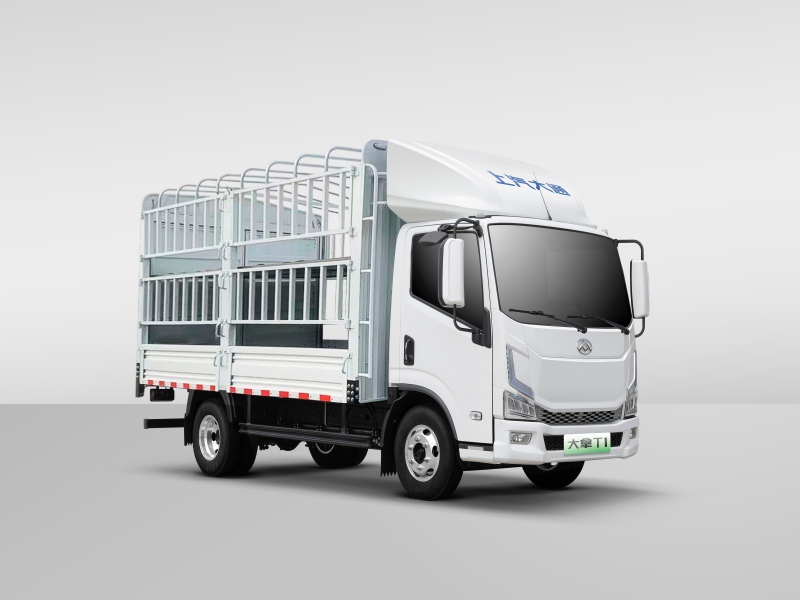

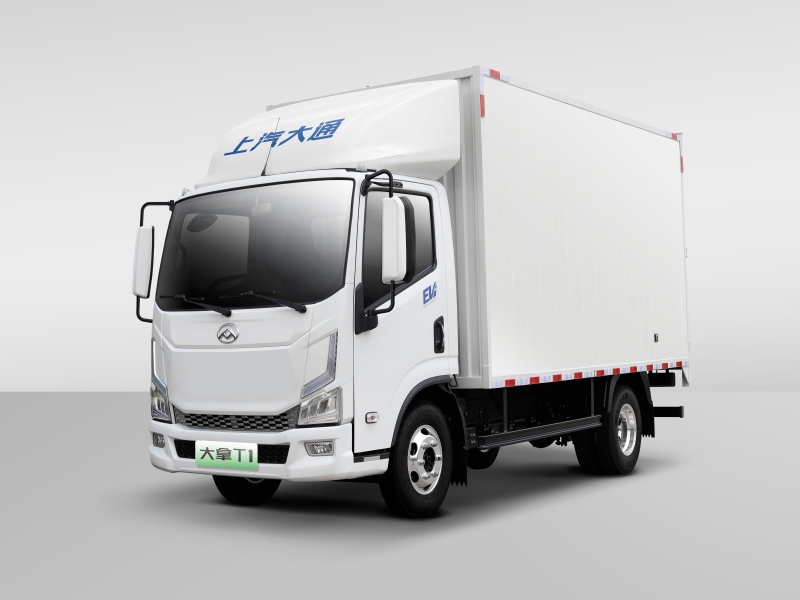

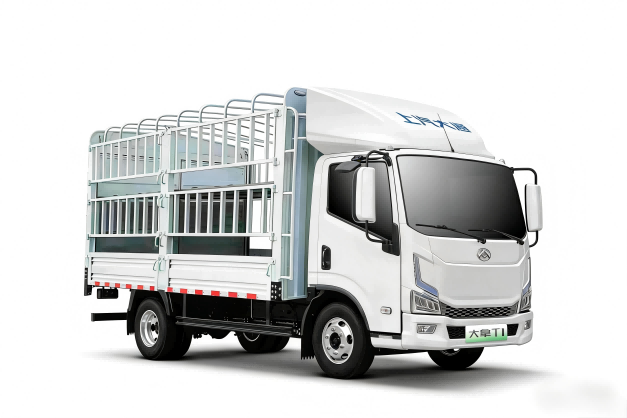

The EC300 series delivers powerful, emission-free logistics with two range options. Built on a robust 6-ton GVW chassis, it handles demanding loads with ease. The efficient Inovance e-drive system provides 120 kW peak power and 360 N·m torque, tackling 30% gradients effortlessly.

Choose between the 86.55 kWh model (232 km full-load range) or extended 100.464 kWh version (269 km full-load range), both featuring 1.2-hour DC fast charging. The driver-focused cabin includes a multi-function steering wheel, LCD display, and T-BOX remote monitoring as standard.

Designed for reliability, it combines durable suspension, ABS+EBD safety systems, and optional LED lighting. The EC300 series—where electric performance meets commercial durability.

  • G.V.W. (kg) :

    6000
  • Payload (kg) :

    3650
  • Wheelbase (mm) :

    3360
  • Capacity (kWh) :

    86.55/100.464
  • Driving Range (Full Load, Comprehensive Condition ) :

    232/269 km
New Products


Product Overviews

--------------占位---------------

EC300 Light Truck: Comprehensive Product Overview



Electric Powertrain Performance: Powered by a high-efficiency electric drive system from Inovance, delivering peak power of 120 kW and peak torque of 360 N·m, ensuring robust performance and a maximum gradeability of 30%.

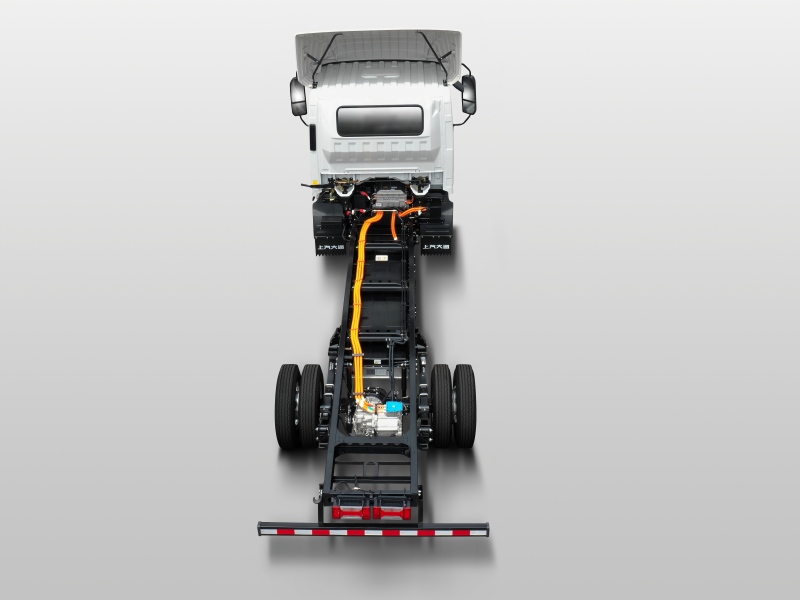

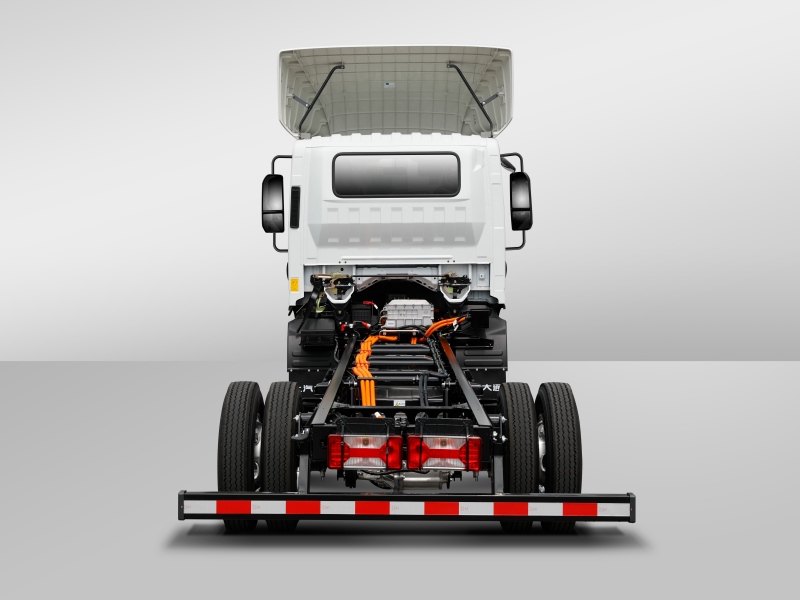

Exceptional Payload Capacity: Engineered with a reinforced chassis to support a Gross Vehicle Weight (GVW) of 6,000 kg, making it capable of handling heavy-duty urban and regional logistics demands.

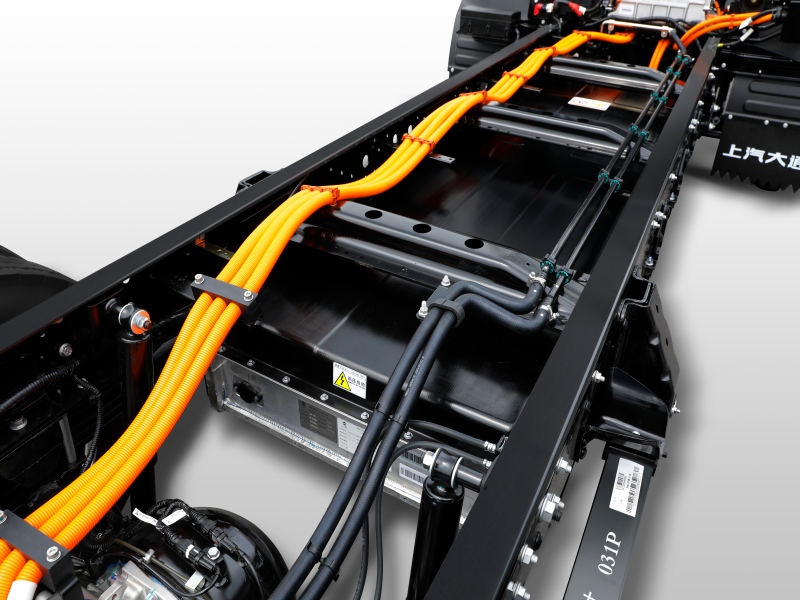

Long-Range Flexibility: Available with two high-capacity CATL battery options (86.55 kWh and 100.464 kWh), offering a real-world range of up to 269 km under full-load conditions and fast DC charging in just 1.2 hours.

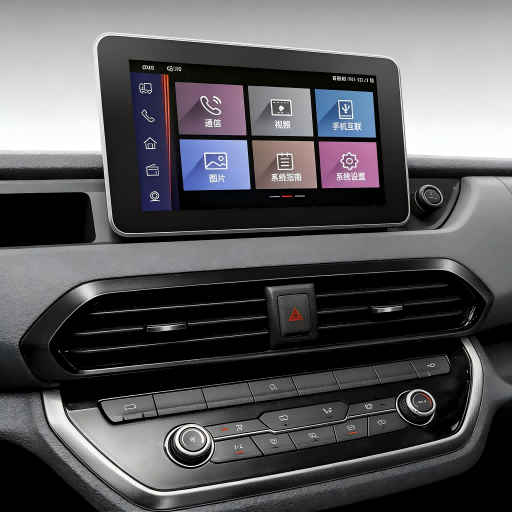

Driver-Focused Cabin: Designed with a spacious three-seat cabin, standard multi-function steering wheel, LCD instrument display, and optional 10-inch touchscreen for enhanced comfort and connectivity.

--------------占位---------------



Product Details



--------------占位---------------



Product Specifications



Weight GVW 6000 6000
CVW 2340(cab&chassis) 2380(cab&chassis)
Load Distribution(FRT/RR axle) 2200/5000 2200/5000
Full-Load Distribution(FRT/RR axle) 2010/3990 2020/3980
No-Load Distribution(FRT/RR axle) 1470/1520 1500/1540
Dimension (mm) Overall Size (L*W*H)
(Excluding rearview mirror )
5966×2015×2270 5966×2015×2270
Overall Size (L*W*H)
(Including rearview mirror )
5966×2550×2270 5966×2550×2270
Overall Size (L*W*H)
(Rearview mirror folded) )
5966×2246×2270 5966×2246×2270
Wheelbase  3360 3360
Front/Rear Overhang  1118/1488 1118/1488
Front/Rear Tread  1610/1580 1610/1580
Frame Beam Section Size  190*65*4.5 190*65*4.5
Cab Type  Single Cabin Single Cabin
Width  (mm) 1885 1885
Seat No.  3 3
Battery Pack Manufacturer/Capacity   CATL/86.55kWh  CATL/100.464kWh
Layout  Tile  Tile
Material  Lithium Phosphate Battery  Lithium Phosphate Battery
Pack No.  1 1
System weight (kg) 598 642
Energy Density(Wh/kg) 150.01 159.56
Rated Voltage(V) 540 502.32
Current (Ah)  160 200
Charging Port Standard  GB/T GB/T
Charging Mode  DC DC
Max. Charging Power(kW) 94.08 109.2
Charging Time (h) 1.2 1.2
Driving Range (Full Load Comprehensive Condition ) (km) 232 269
Driving Range (Half Load with Constant Speed of 40km/h ) (km) 446 517
Power Consumption (kWh per 100km, constant speed) 21.6kWh@40km/h 21.6kWh@40km/h
Liquid Cooling
Electric Film Heating  S S
e-Motor

Brand  Inovance  Inovance
Model  TZ210XS104 TZ210XS104
Driving Type Motor directly connected with rear axle
Rear-wheel drive
Motor directly connected with rear axle
Rear-wheel drive
Rated/Peak Power (kW)  60/120 60/120
Rated/Peak Torque (N.m)  160/360 160/360
Max. Speed (rpm)  12000 12000
Max. Climbing Ability (%)  30 30
Max. Speed (km/h)  100 100
Chassis No. of Rear Tires  Rear Double Tire  Rear Double Tire
Tire Size   7.00R16LT 8PR 7.00R16LT 8PR
Gearbox Model N/A N/A
Gearbox Gear Ratio    N/A N/A
RR Axle Ratio   5.286 5.286
Steering  Electric Power Steering Electric Power Steering
Front Suspension   Leaf spring 3 PCS Leaf spring 3 PCS
Rear Suspension  Leaf spring 3+3 PCS Leaf spring 3+3 PCS
Service Brake Hydraulic braking
FR disc/ RR drum
Hydraulic braking
FR disc/ RR drum
Parking Brake  Pulling cable
Central Drum
Pulling cable
Central Drum
Transmission PTO interface
High Voltage Power Supply  O O
ABS+EBD S S
ESC
AEBS+LDW
Forward Collision Warning(FCW)
Speed Limit  (90km/h)  S S
Cruise Control S S
Radio+USB+Bluetooth S S
10 Inch Touch Screen  O O
LCD Instrument Display System (Driving Computer)  S S
Tire Pressure Monitoring System
AC  S S
Can Bus  S S
Brake Energy Recovery  S S
Pedestrian Reminder  S S
Turning Reminder
Adjustable Multi-function Steering Wheel  S S
Headlamp Height Adjustable (electric)  S S
Halogen Headlamp S S
LED大灯LED Headlamp O O
Automatic Induction Headlamp S S
Daytime Running Light S S
Remote Monitoring System (with T-BOX)  S S
Battery Heat Management (Electric Heating)  S S
Power-adjusted electric heating Rearview Mirror O O
Seatbelt Unbuckle Warning S S
Brake Shoe Self-adjust  S S
Rear Shock Absorber S S
Single Battery Voltage 12V) S S
 ● Standard; ○ Optional ; —  Not Available
